TWSD05-4-LBP Truck Side Detection System

Model No.: TWSD05-4-LBP

1) Rated Voltage: DC 12/24V (Working Voltage Range 10~32V);

2) 1m/1.5m detection range - 2 levels of sensitivity - (selectable via dip aswitch); Zone distance: 0 - 0.6 - 1 -1.5m or 0 - 0.6 -1m;

3) Improved anti-interference function;
4) Advanced self-diagnosis with error indication;
5) Environment Learning Mode - Prevents false alarms from vehicle ancillary equipment intruding into the first 1m of the detection zone;
6) Obstacles detection in under 200 milliseconds;

7) Waterproof level: ECU: IP69K, Sensor & connector: IP68;

8) 4*LBP SmartSensor module built in double angle sensor, 4*2.5m sensor cable. Different angle mounting bracket (4*0° and 4*11°), 4*underslung;

9) DSP05 monitor with built-in buzzer; volume and sound zone adjustable via buttons;

11) Industrial cables and connectors, Microchip MCU;

12) Indicator module can supply.

Speed Pulse and Indicator Two-in-One trigger module can provide

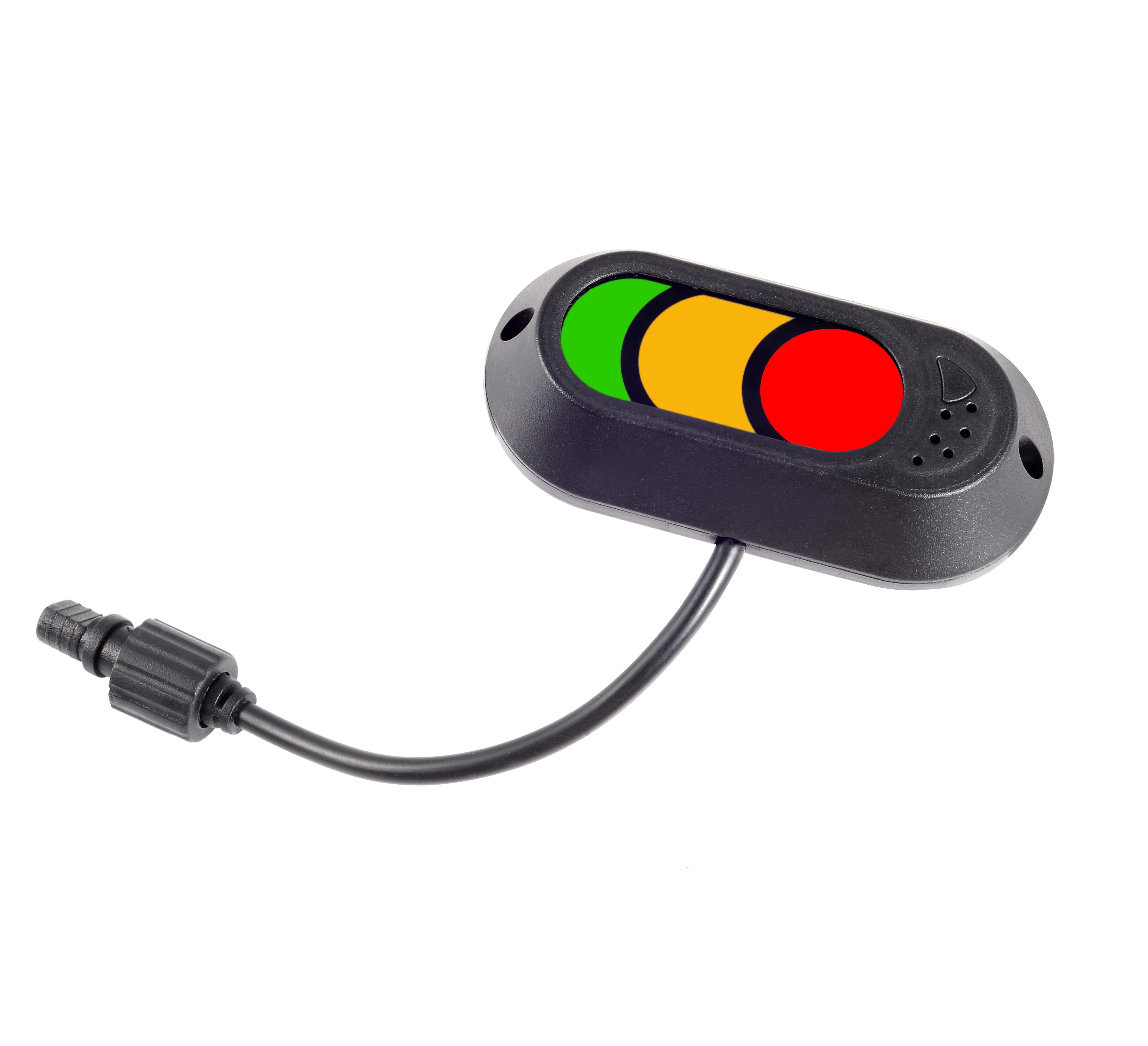

  Dsp05 display

• Voltage: 9-16V

• Current:100~200mA

• Buzzer Frequency: 2300 Hz

• Buzzer Volume: 85~90dB at 10cm

• Operating temperature: -40~80 °C

• 3 colors, RED, YELLOW, GREEN

• Connect to TW series

• Built-in buzzer with high-low button. Short press the button to change the sound volume.

• Pressing the button and hold on 1.5s, then short press button to change the sound zone.

  e.g. press the button and hold on 1.5s, the red light flashes twice, the buzzer only beep in red area.

  Short press the button, if the red and yellow lights flash twice, the buzzer beep in red and yellow area.

  If all lights flash twice, the buzzer will beep all area.
